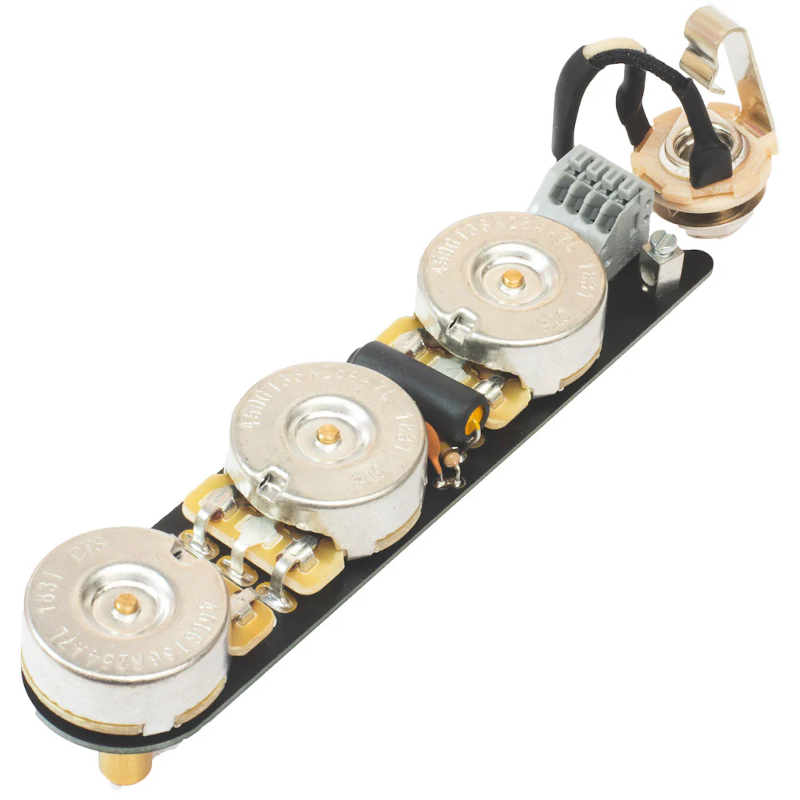

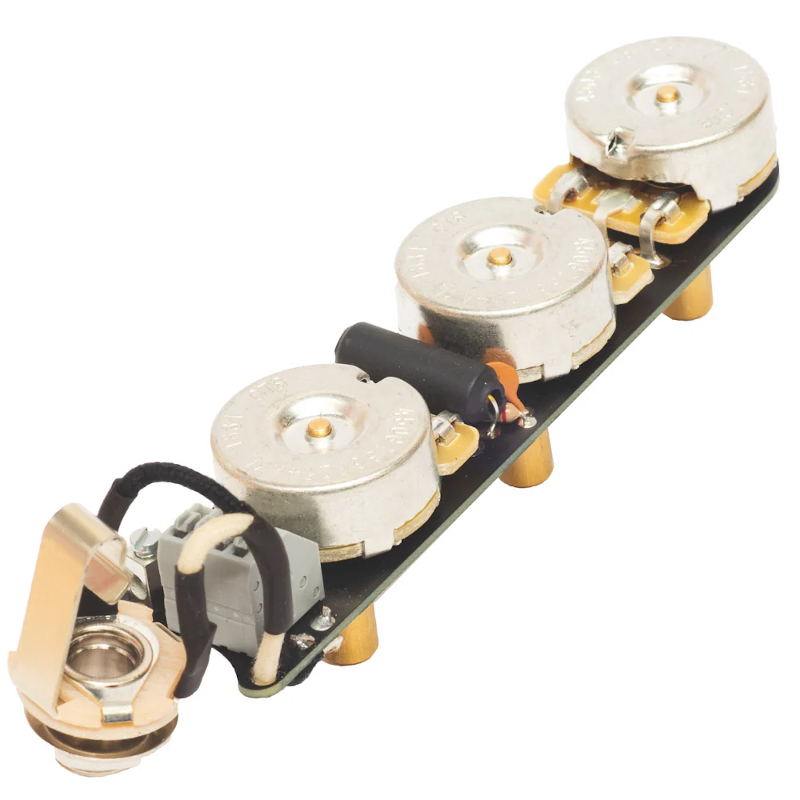

JAZZ BASS SOLDERLESS WIRING HARNESS
The Obsidian® for Jazz Bass wiring harness is a complete electronics upgrade for your Jazz bass with some Obsidian® mods for clarity at all volumes, and a smoother range of tone and volume control.
These are built to be a direct fit for genuine Fender Jazz Bass, and Squier Jazz Bass with some adjustments.
CRYSTAL CLEAR TONE (Treble Bleed)
Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.
SMOOTH CONTROL
Even tone and volume control all the way from zero to ten. Obsidian® tone and volume controls incorporate carefully selected and custom-built components, as well as our own clever mods to smooth out the taper of your tone and volume controls, so you get a more even roll off all the way from zero to 10.
Specs
- Potentiometers: ObsidianWire® Custom CTS Pots 250K (+/-10%) Solid Shaft 1/4"
- Capacitors: Vintage Plus // 150 Series Polyester Film 0.047UF - (+/-5%) or True Vintage 63 // Radial Metallized Polyester Film (+/-10 %)
- Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in
|
