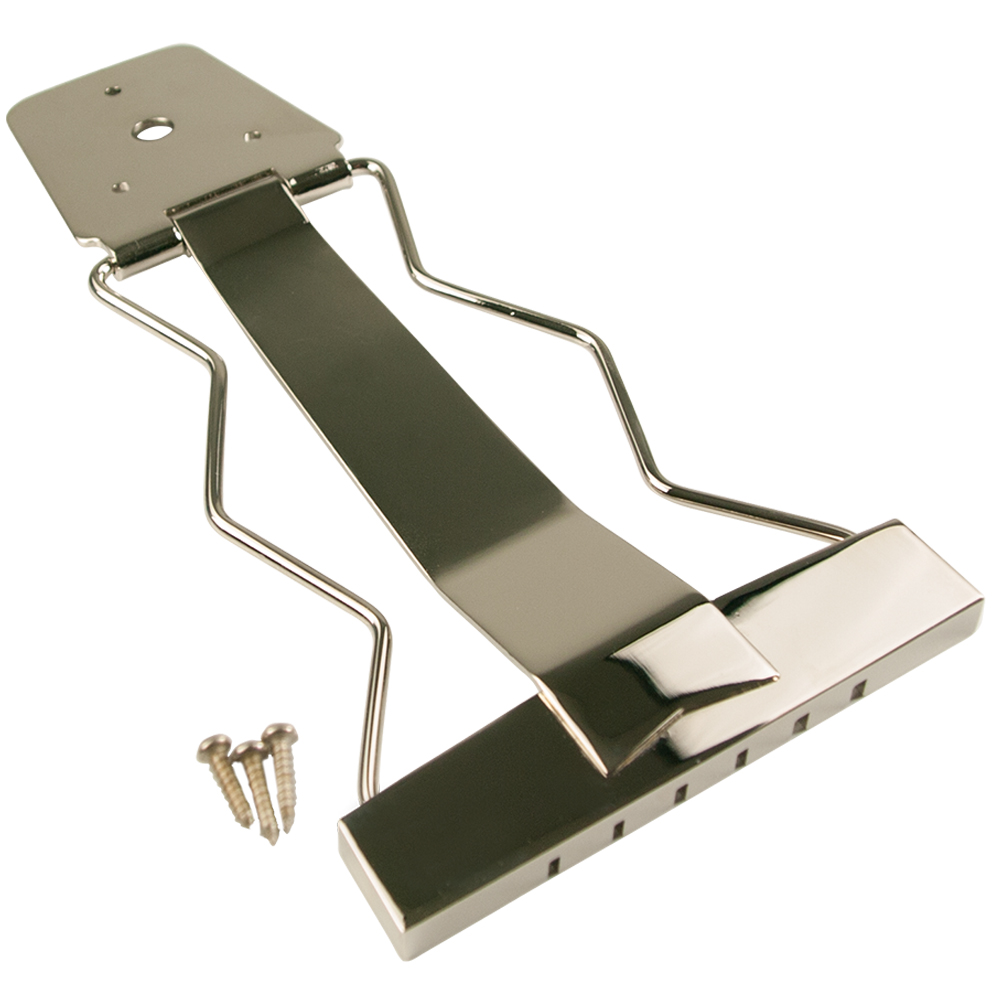

WD® Replacement Tailpiece For Vintage Gibson® ES-175, Nickel
This tailpiece is a correct replacement for vintage Gibson® ES-175's.
String Spacing at tension bar = 2 1/8 in (54mm)
Tension bar overall width = 3 61/64 in. (100mm)
Tailpiece length not including hinge = 5 13/32 in. (137.5mm)
Length of Hinge to center of hinge loop = 2 11/32 in. (59.5mm)
Hinge width = 2 9/64 in. (54.4mm)
Strap button hole location = 1 13/64 in (30.7mm) below hinge loop center
Hinge mounting hole locations = 9/16 in. (14.3mm) above strap button hole center
Lower mounting hole location = 11/16 below center of strap button hole
Upper hinge mounting holes = 1 1/16 in. (27.1mm) apart centered above strap button hole
|
