Custom 7 WAY Wiring solderless harness for Strat®// Gilmour Mod.
The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar. The new Obsidian® Custom 7 Way wiring harness for Stratocaster® has had a complete over hall, to make the super versatile 7 Way wiring mod even better. The new upgraded harness retains the '7-way' switching inspired by David Gilmour, but improves the tone control layout, smooths out the tone and volume control responses, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.
Key Features:
- New 'Gen2' Model
- Gilmour Mod / '7-Way' Switching
- Improved Tone Control Layout
- Switchable Volume Control Voicings
- Fits Fender® Strat®
- Includes Pro-Wired Jack
Components:
- Potentiometers: Obsidian® Custom CTS 250k Pots (+/-10%) Split Shaft / 24 Spline
- Capacitors: (150 Series Polyester Film 0.022uf) (+/-5%)
- Switch: Oak® 5 Way Selector Switch

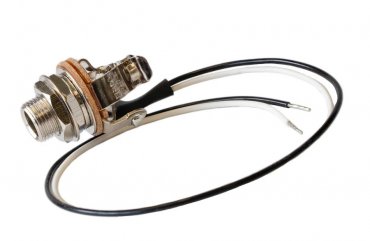

- Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in
7-WAY STRAT SWITCH // GILMOUR MOD
The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.
'VOICE' SWITCHING (Switchable Treble Bleed)
Shape your volume control to your playing style. Match the function of your volume control to your playing style, with a 'Clear' mode and a 'Balanced' mode.
'CLEAR' MODE - Crystal clear tone at any volume level
'BALANCED' MODE - Roll off some highs with the volume control for a smooth transition between clean and crunch
OBSIDIAN® LAYOUT
Tone & volume controls that make sense. We have assigned 'Tone control 1' to the neck and middle pickups, leaving 'Tone control 2' as a dedicated bridge pickup tone control, for balancing the brighter treble in switch positions 1 & 2.
Controls:
GILMOUR SWITCH FUNCTION
|
'7 WAY' GILMOUR SWITCH ON (UP)
|
'7 WAY' GILMOUR SWITCH OFF (DOWN)
|
|
Bridge + Neck
|
Bridge
|
|
Bridge & Middle + Neck
|
Bridge & Middle
|
|
Middle + Neck
|
Middle
|
|
Neck & Middle
|
Neck & Middle
|
|
Neck
|
Neck
|
